PNEUMATIC DIAPHRAGM VALVES

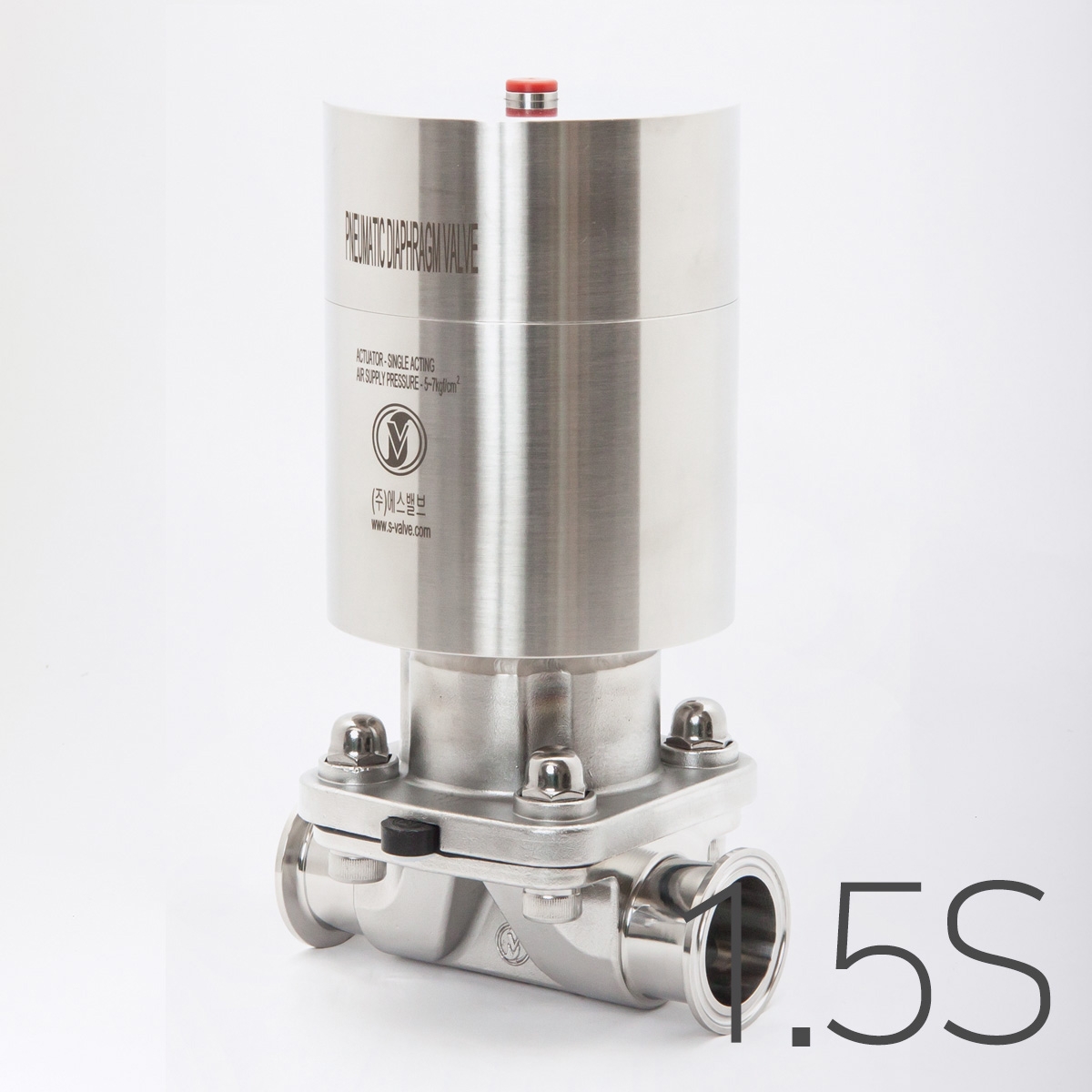

PNEUMATIC DIAPHRAGM VALVE

SVA117

SVA117_01.jpg SVA117_02.jpg SVA117_03.jpg SVA117_04.jpg SVA117_05.jpg SVA117_06.jpg SVA117_07.jpg SVA117_08.jpg SVA117_txt_01.jpg SVA117_txt_02.jpg SVA117_txt_03.jpg SVA117_txt_04.jpg SVA117_txt_05.jpg

Features

Size : ISO 1/2S~4S
Connection : ISO Ferrule, Male, Weld
Material
  - Body : Casting STS316L
  - Body : Forging STS316L
  - Bonnet : Casting STS304
  - Cylinder : STS304
Diaphragm
  - TFM - FDA, Single
  - TFM - FDA, Two piece
  - CFR21 Section 177.1550
Surface Treatment
  - Internal Ra≤0.4㎛
  - External Ra≤0.6㎛
  - Other : Electrolytic Polishing
Working Temperature -5℃~150℃
Working Pressure 6㎏/㎠
Operating Air Pressure 4~7㎏/㎠
